|Our Unique Integrated Design...
Quality and Safety from the ground up:
If safety is important to you, or your
organization, you will find no better system on the market than
Elecompack. Designed to withstand the ever present seismic activity
around the Pacific Rim, our products have more built in safety
measures than any other system on the market.
When we set out to design the world's best mobile system, we
used the concept that a building is only as stable as it's foundation; so we started at the bottom
and worked our way up.

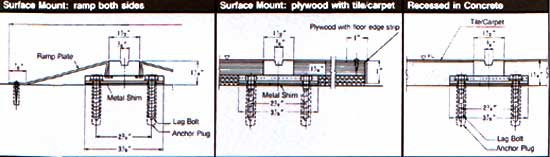

All Elecompack rails are flush with the floor. Whether you are recessing
in concrete, or building a new floor, all our installations provide a
complete flush finish, free of gaps and tripping hazards. Each of the three
diagrams above shows a different method for fixing our rails to your flooring.
All provide the same result--a system free from hazards.
rails are installed, the next components in the Elecompack system are the
carriages themselves. All our carriages feature five inch wheels, connected by
solid steel drive shafts. Additionally, all wheels are driven which allows for
easier movement, while eliminating "racking" or swaying, especially across long
rows of shelving.
Elecompack shelving uprights are then precision recessed five
inches down into our carriages and securely bolted. This method of joining
shelving and carriage assures the ultimate in structural integrity and safety.
Most other suppliers simply mount either four-post standard shelving, or
single-post cantilever shelving on top of their carriages and attach it with
sheet metal or "tec" screws and "L" brackets. (see the photo
our competitors on the market today manufacture carriages onto which they attach static shelving. The only problem is that static shelving wasn't designed
for such a purpose and is inherently unstable when in motion.
Our engineers solved the problem by designing a unique
shelving system specifically for use in mobile applications. The Elecompack
system utilizes a four-post "reverse cantilever" design that provides
superior structural integrity and strength. We also offer the ability to recess
mount traditional center post cantilever shelving.
Shelves are independently adjustable on both faces. Simply
lift and remove the shelf, adjust the brackets up/down and replace the shelf.
The entire operation may be accomplished in less than 10 seconds...without the
use of tools.
As the photo shows, standard shelves can be
mounted at whatever height is required, independent of the opposite
shelving. The only way to accomplish this with standard four post
shelving is to increase the cost and the weight load of the system
by tyng together single face units in a back to back configuration.
Top of the Line:
Elecompack engineers designed a superior anti-tip system that positively
eliminates any chance of your shelving tipping over...regardless of any mis-use
or abuse the shelving may be subjected to, such as unbalanced loading or perhaps
someone using a bottom shelf as a stool or ladder to reach an upper shelf.
Our overhead anti-tip system consists of roller brackets bolted to
structural welded channels at the top of our uprights. The seismic pipe is then
inserted through the roller brackets and securely anchored to either a
stationary shelving unit on the end of a module or wall. This overhead Anti-tip
method is the only design which provides absolute safety and even protects
against intentional abuse.
Remember, our products were specifically designed to meet the
tough seismic requirements of Japanese engineers. These exclusive Elecompack
features eliminate swaying, racking, and potential tipping hazards associated
with other products.
